Product Details
Highlight: pick and place nozzle, gripper nozzle
Parts Number: AA0HN00
Parts Name: Nozzle 2.5G And 2.5mm
Material: Rubber Tip
Condition: Original New And Copy New
Machine Model: FUJI NXT Head H01 And H02 Head
Function: Use For SMD Component
Product Description

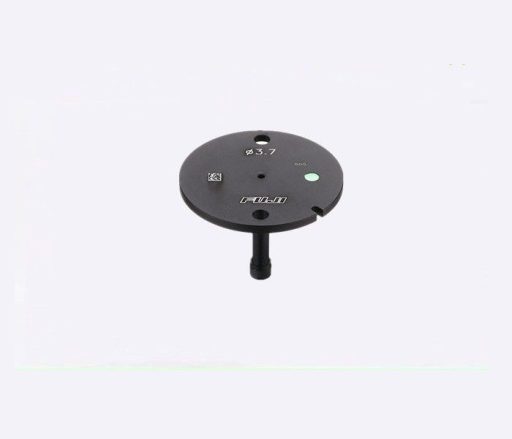

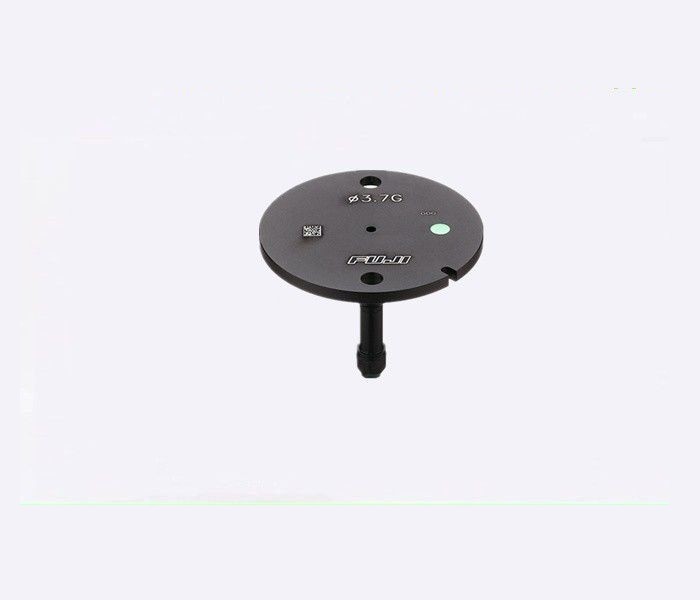

AA08500 H01 & H02 Placing Head Nozzle 3.7G With Rubber Pad and AA0HN00 Nozzle 3.7mm
Part Number Description
AA06W00 Nozzle 1.0
AA06X00 Nozzle 1.3
AA06Y00 Nozzle 1.8
AA06Z00 Nozzle 2.5
AA07A00 Nozzle 3.7
AA07B00 Nozzle 5.0
AA07C00 Nozzle 7.0
AA07D00 Nozzle 10.0
AA07E00 Nozzle 15.0
AA22Y00 Nozzle 1.3m MELF
AA22Z00 Nozzle 1.8m MELF
AA07F00 Nozzle 2.5 with rubber pad
AA00G00 Nozzle 3.7 with rubber pad
AA00H00 Nozzle 5.0 with rubber pad
AA07K00 Nozzle 7.0 with rubber pad
AA07L00 Nozzle 10.0 with rubber pad
AA07M00 Nozzle 15.0 with rubber pad
FUJI NXT NOZZLE H08/ H12S PLACING HEAD
AA1AT00 Nozzle 0.3
AA05600 Nozzle 0.4
AA05700 Nozzle 0.7
AA05800 Nozzle 1.0
AA20A00 Nozzle 1.3
AA20B00 Nozzle 1.8
AA20C01 Nozzle 2.5
AA0WT00 Nozzle 2.5G
AA20D00 Nozzle 3.7
AA20E00 Nozzle 5.0
AA06400 Nozzle 1.3m MELF
AA19G00 Nozzle 1.8m MELF
AA18C00 Nozzle 3.7G with rubber pad
AA06300 Nozzle 5.0G with rubber pad
FUJI XP 241 341 SMT NOZZLE
Part Number Description
ADEPN8510 FUJI XP2 PICK UP NOZZLE Φ0.7
ADEPN8520 FUJI XP2 PICK UP NOZZLE Φ1.0
ADEPN8530 FUJI XP2 PICK UP NOZZLE Φ1.3
ADEPN8540 FUJI XP2 PICK UP NOZZLE Φ1.8
ADEPN8550 FUJI XP2 PICK UP NOZZLE Φ2.5
ADEPN8560 FUJI XP2 PICK UP NOZZLE Φ3.7
ADEPN8530 FUJI XP3 PICK UP NOZZLE Φ0.7
ADEPN8540 FUJI XP3 PICK UP NOZZLE Φ1.0
ADEPN8550 FUJI XP3 PICK UP NOZZLE Φ1.3
ADEPN8560 FUJI XP3 PICK UP NOZZLE Φ1.8
DEPN3080 FUJI XP3 PICK UP NOZZLE Φ5.0
DEPN3089 FUJI XP3 PICK UP NOZZLE Φ7.0
DEPN3100 FUJI XP3 PICK UP NOZZLE Φ10
DEPN3110 FUJI XP3 PICK UP NOZZLE Φ15
DEPN3120 FUJI XP3 PICK UP NOZZLE Φ20
FUJI XP 142 143 141 SMT NOZZLE
Part Number Description
ADNPN8210 XP-142 NOZZLE ASS’Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS’Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS’Y-1.3Φ
ADNPN8210 XP-142 NOZZLE ASS’Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS’Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS’Y-1.3Φ
ADNPN8250 XP-142 NOZZLE ASS’Y-1.8Φ
ADNPN8260 XP-142 NOZZLE ASS’Y-2.5Φ
ADNPN8270 XP-142 NOZZLE ASS’Y-3.7Φ
ADNPN8280 XP-142 NOZZLE ASS’Y-5.0Φ
ADEPN-8070 XP-141 NOZZLE ASS’Y-0.7Φ
ADEPN-8080 XP-141 NOZZLE ASS’Y-1.0Φ
ADEPN-8090 XP-141 NOZZLE ASS’Y-1.3Φ
ADEPN-8100 XP-141 NOZZLE ASS’Y-1.8Φ
FUJI QP341 INDEX SMT NOZZLE
Part Number Description
ADBPN-8123 QP-3 NOZZLE 1.8Φ
ADBPN-8133 QP-3 NOZZLE 2.5Φ
ADBPN-8193 QP-3 NOZZLE 2.5ΦG
ADBPN-8143 QP-3 NOZZLE 3.75Φ
ADBPN-8023 QP-3 NOZZLE 5Φ
ADBPN-8203 QP-3 NOZZLE 5ΦG
ADBPN-8213 QP-3 NOZZLE 8ΦG
ADBPN-8223 QP-3 NOZZLE 15ΦG
ADBPN-8233 QP-3 NOZZLE 17.5ΦG
ADBPN-8180 QP-3 NOZZLE SINGLE 20Φ L=270
ADBPN-8440 QP-3 NOZZLE SINGLE 20Φ L=200
ADBPN-8340 QP-3 NOZZLE SINGLE 20Φ L=110
ADBPN-8341 QP-3 NOZZLE SINGLE 23ΦG (for BGA)
FUJI QP242 QP132 INDEX SMT NOZZLE
Part Number Description
ABHPN – 8510 QP-S-12 -Ø 0.7
ABHPN – 8520 QP-S-12 NZ. Ø 1.0
ABHPN – 8530 QP-S-12 NZ. Ø 1.3 / 1.0
ABHDN – 8560 QP-M-38 NZ. Ø 2.5 / 1.9
ABHDN – 8570 QP-M-38 NZ. Ø 3.7 / 1.7
ABHPN – 8590 QP-L-47 NZ. Ø 7.0
CGPN-8036 QP132 Ø0.7 / Ø0.4
CGPN-80250 QP132 Ø1.0 / Ø0.7
CGPN-8015 QP132 Ø1.3 / Ø0.9
FUJI CP3 DARKPOINT SMT NOZZLE
Part Number Description
AGPH – 9560 FUJI CP3/S SMT NOZZLE Ø 0.7
AGPH – 9410 FUJI CP3/S SMT NOZZLE Ø 1.0
AGPH – 9130 FUJI CP3/S SMT NOZZLE Ø 1.3
AGPH – 9050 FUJI CP3/S SMT NOZZLE Ø 1.3 (MELF)
AGPH – 9470 FUJI CP3/L SMT NOZZLE Ø 1.3
AGPH – 9060 FUJI CP3/L SMT NOZZLE Ø 2.5
AGPH – 9430 CP3/L Ø 3.4
AGPH – 9460 CP3/L Ø 1.3 (MELF)
AGPH – 9570 CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH – 9550 CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH – 9190 CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH – 9200 CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH – 9440 CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5
FUJI CP4 CP6 CP7 SMT NOZZLE
Part Number Description
AMPH – 8710 CP4/S Ø 0.7
AMPH – 8720 CP4/S Ø 1.0
AMPH – 8730 CP4/S Ø 1.3
AMPH – 8740 CP4/S Ø 1.8
AMPH – 8750 CP4/S Ø 2.5
AMPH – 8760 CP4/L Ø 2.5
AMPH – 8770 CP4/L Ø 3.7
AMPH – 8780 CP4/L Ø 5.0
AWPH – 9510 CP6/S Ø 0.7
AWPH – 9520 CP6/S Ø 1.0
AWPH – 9530 CP6/S Ø 1.3
AWPH – 9550 CP6/S Ø 1.8
AWPH – 9541 CP6/S Ø 1.3 (MELF)
AWPH – 9580 CP6/L Ø 2.5
AWPH – 9600 CP6/L Ø 3.7
AWPH – 9591 CP6/L Ø 2.5 (MELF)
AWPH – 9560 CP6/M Ø 2.5
ADCPH – 9510 CP7/S Ø0.4 (8mm Diameter)
ADCPH – 9520 CP7/S Ø0.7 (8mm Diameter)
ADCPH – 9530 CP7/S Ø1.0 (8mm Diameter)
ADCPH – 9540 CP7/S Ø1.3 (8mm Diameter)
ADCPH – 9700 CP7/S Ø1.3 (8mm Diameter) MELF
ADCPH – 9550 CP7/S Ø1.8 (16mm Diameter)
ADCPH – 9560 CP7/L Ø2.5 (16mm Diameter)
ADCPH – 9710 CP7/L Ø2.5 (16mm Diameter) MELF
ADCPH – 9570 CP7/L Ø3.7 (16mm Diameter)
ADCPH – 9580 CP7/L Ø5.0 (16mm Diameter) SQUARE
FUJI IP IP2 IP3 SMT NOZZLE
Part Number Description
IPH – 3431 FUJI IP SMT NOZZLE – SS NOZZLE Ø 1.0
IPH – 3421 FUJI IP SMT NOZZLE – S NOZZLE Ø 1.3
IPH – 3411 FUJI IP SMT NOZZLE – M NOZZLE Ø 2.5
IPH – 3401 FUJI IP SMT NOZZLE – L NOZZLE Ø 4.0
IPH – 4511 FUJI IP SMT NOZZLE – LL NOZZLE Ø 7.0 (WITH CAP)
IPH – 4520 IP – LL NOZZLE Ø 10.0 (WITH CAP)
IPH – 4531 IP – LL NOZZLE Ø 15.0 (WITH CAP)
IPH – 4541 IP – LL NOZZLE Ø 20.0 (WITH CAP)
AKPH – 2051 IP2 – SS Ø 1.0 (FIXED)
AKPH – 2031 IP2 – S Ø 1.3 (FIXED)
AKPH – 2041 IP2 – M Ø 2.5 (FIXED)
AKPH – 2061 IP2 – L Ø 4.0 (FIXED)
AQNA – 3130/39 IP3 – Ø 1.3 (FIXED) (31 x 31mm)
AQNA – 3140/49 IP3 – Ø 1.8 (FIXED) (31 x 31mm)
AQNA – 3150/59 IP3 – Ø 2.5 (FIXED) (31 x 31mm)
AQNA – 3160/69 IP3 – Ø 3.7 (FIXED) (31 x 31mm)
AQNA – 3170 IP3 – Ø 7.0 (FIXED) (31 x 31mm)
AQNA – 3180 IP3 – Ø 10.0 (FIXED) (52 x 52mm)
AQNA – 3190 IP3 – Ø 15.0 (FIXED) (62 x 62mm)
AQNA – 3200/01 IP3 – Ø 20.0 (FIXED) (102 x 102mm)
AQNA – 3290/95 IP3 – Ø 3.7 (FIXED) (52 x 52mm)
AQNA – 3300/04 IP3 – Ø 7.0 (FIXED) (52 x 52mm)
AQNA – 3310/14 IP3 – Ø 10.0 (FIXED) (62 x 62mm)
AQNA – 3320/24 IP3 – Ø 15.0 (FIXED) (102 x 102mm)
AQNA – 3330/34 IP3 – Ø 6.5 (FIXED) (52 x 52mm)
IPA – 0007 IP – LL ADAPTOR Ø 7.0
IPA – 0010 IP – LL ADAPTOR Ø 10.0
IPA – 0015 IP – LL ADAPTOR Ø 15.0
IPA – 0020 IP – LL ADAPTOR Ø 20.0
FUJI QP QP132 QP242 QP341 SMT NOZZLE
Part Number Description
BHPN – 3271 QP SMT NOZZLE SPRING PLATE
BHPN – 3232 QP SMT NOZZLE SPRING PLATE
ABHPN – 6246 – Ø 2.5
ABHPN – 6256 – Ø 3.75
ABHPN – 6276 – Ø 7.0
ABHPN – 6365 – Ø 7.0
ABHPN – 6852 – Ø 5.0 (W/RUBBER CUP)
ABHPN – 6893 – Ø 8.0 (W/RUBBER CUP)
ABHPN – 6803 – Ø 15.0 (W/RUBBER CUP)
ABHPN – 6703 – Ø 17.5 (W/RUBBER CUP)
CGPN-8036 QP132 Ø0.7 / Ø0.4
