Product Details

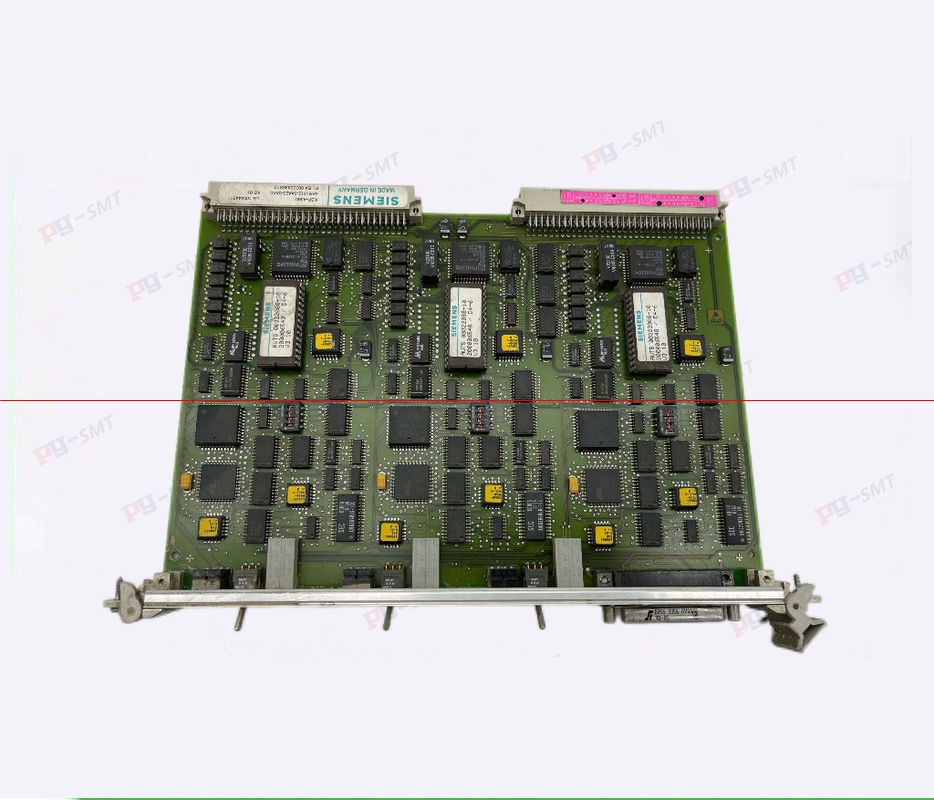

Highlight: Siemens ASM Axis PC-Board, 00302836S12 SMT PCB Board, 00302836S12
Part Number: 00302836S12
Condition: Original Used
Quality: 100% Tested
Warranty: 3 Months
Product Description
| 00118526-01 | Additional mechanical PCB alignment for S-27 HM single conveyor: with this option PCBs with a length/width ratio >2/1 can be transported with the small side at the single conveyor belts into the placement area. This option is only available for single conveyor. |
| 00118528-01 | Long Board Support for SIPLACE S-27 HM Single Conveyor: this Option supports PCBs up to a size of 610mm x 460mm (24 inch x 18 inch ). This Option must be ordered per conveyor lane.This option can only be used for single conveyor. Content: 2 supports long PCBs, 1 lifting table option SC. |
| 00119011-01 | Adapter device HS-xx changeover table with wheels version 2 (119022) for reel holder (item no:141204) of 3x8mm feeders (item no:141098,141099). Not compatible to COT D4 119821. |
| 00119016-01 | Air filter box for SIPLACE HS-xx inclusive fan with increased power and covers with filter mat. 1 package per machine required. This package can be used for all machine types HS-50 and following. |
| 00119030-01 | Extension Cable (1.5m long) from external Power Supply to HS-xx/D4 feeder changeover table. |
| 00119160-01 | One set of nozzle changers for 12-Segment Collect and Place Head HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry.Option includes: 4 nozzle changers with 5 magazines for 12 nozzles, 4 nozzle discarding devices. Station software version from 501.xx, line computer software version 501.xx. |
| 00119161-01 | Nozzle changer for 12-Segment Collect and Place Head SIPLACE HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry. Option includes: 5 magazines, each for 12 nozzles. Station software version from 501.xx, line computer software version from 501.xx. |
| 00119162-01 | Additional set of nozzle changers for 12-Segment Collect and Place Head HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry. Option includes: 4 nozzle changers with 5 magazines for 12 nozzles, 4 nozzle discarding devices, 1 SLIO-module. Station software version from 501.xx. |
| 00119185-02 | Retrofitting kit to 230/400V operating voltage for SIPLACE HS-xx/D4. Delivery as a part of station free of charge. Attention: If retrofitted at a customer a voltage savety check (DIN EN 60204) is necessary. For assistance plese ask SIPLACE SMT Service. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses Voltage test required |
| 00119405-01 | Long Board Option for SIPLACE HS-50: with this Option we can handle pcb’s up to 610mm x 460mm (24 inch x 18 inch) in the single conveyor mode. This option can be used for single and dual conveyor systems. |
| 00119610S02 | The Feeder Protection consists of a cover over the feed area (119622,119755). If a feeder is pressed up or if feeder flaps are projecting upwards, the EMERGENCY OFF is actuated. The option contains one protection plate, which can be installed in location 2 or 4. |
| 00119618S02 | CO camera, stationary P+P (type 20) 8×8 |
| 00119633S02 | The Feeder Protection consists of a cover over the feed area (119622,119755). If a feeder is pressed up or if feeder flaps are projecting upwards, the EMERGENCY OFF is actuated. The option contains one protection plate, which can be installed in location 1 or 3. |
| 00119665-01 | The 12-Segment Collect and Place Head Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE HF and HF/3 (119600 and 119650) Placement Machine with Head Modularity, in a 12-Segment Collect and Place Head. The Kit includes: 12-Segment Collect and Place Head, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 12-Segment Collect and Place Head has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119666-01 | The 6-Segment Collect and Place Head Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE HF and HF/3 (119600 and 119650) Placement Machine with Head Modularity, in a 6-Segment Collect and Place Head. The Kit includes: 6-Segment Collect and Place Head, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6-Segment Collect and Place Head has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119689-02 | PCB BARCODE READER 2D FOR S,F This scanner assembly is used together with the mounting kit 00119442-01 (in SIPLACE S, F). |
| 00119718S02 | Additional high resolution, stationary component camera digital in X-Series,D1,D3 machines for centering of FlipChips. With this head a component range from 0.2mm x 0.2mm up to 16mm x 16mm can be placed. The smallest ball diameter is 80um, the min. Lead / Ball pitch 250um / 140um. |
| 00119720S01 | Package for placement of 0201 components (size 0.6mm x 0.3mm). Suitable for SIPLACE X/D-Series (SCSW 605)equipped with the 12-Segment Collect and Place head. The Package includes: High resolution camera (Exchange between standard digital component camera. The standard digital component camera is then not part of delivery), 24 x Nozzle type 906 oval tip,Component Sensor, Reconfiguration Instructions for 0201 placement. A 0201 Paket is essential for each placement head. In addition for the D-Series (and X-Series equipped with S-Feeders) the special 3x8mm 0201 feeder module is necessary for any 0201 placement (item number: 141099).This item number can only be ordered in combination with SIPLACE X/D-Series. It cannot be ordered seperately. |
| 00119721-01 | The Twin Head Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series/D3 (119700 / 119750 / 119780 / 119870) Placement Machine with Head Modularity, in a Twin Head. The Kit includes: 2 Pick and Place Modules, Stationer Component-Camera (Digital), a nozzle changer with 3 Dual Garage Magazine and 1 Single Garage Magazine, Cover, Head Servo Cards, Head Adapter board, Vision Controller, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head Exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6 nozzle head has to be ordered separately. The customer service isn not included in this price. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119747-01 | Holder for Nozzle Changer TwinHead for MTC X-Ser. |
| 00119753-01 | The Re-Configuration Kit Highforce Head is necessary to exchange the TwinHead of a placement machine of SIPLACE HF/X-Series by an Highforce Head The Highforce Head is a modified TwinHead, which is able to reach placement forces up to 30N (+/-15%) with SIPLACE HF/D3/X-Series. The kit includes: two Highforce Pick and Place Modules, servo-cards, additional parts, one software CD, tools for head exchange, box for replaced head and a technical manual. Customer service is not included. If the customer sends the used TwinHead modules back to us, he will get a credit of 60% of the original spare part price (03001095S03).Preconditions:Line software Siplace Pro 2.1SP2 or higher, Station software 505.03 or higher. |
| 00119754-01 | The Re-Configuration Kit Highforce Twin Head is necessary to exchange the Collect and Place Head of a placement machine of SIPLACE X-Series by an Highforce TwinHead. The Highforce TwinHead is a modified TwinHead, which is able to reach placement forces up to 30N (+/-15%) with SIPLACE X-Series. The kit includes: two Highforce Pick and Place Modules, one stationary camera system, one nozzle changer with three standard magazines (dual garage) and one magazine for customized nozzles, head protection cover, servo-cards, head adaptor boards, cables, additional parts, one software CD, tools for head exchange, box for replaced head and a technical manual. Customer service is not included. Preconditions:Line software Siplace Pro 4.1 or higher, Station software 603.01 or higher. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119760-01 | The 12-Segment Collect and Place Head digital Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series/D3 (119700,119750,119780,119870) Placement Machine with Head Modularity, in a 12-Segment Collect and Place Head with Digital Camera. The Kit includes: 12-Segment Collect and Place Head digital, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 12-Segment Collect and Place Head digital has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119761-01 | The 6-Segment Collect and Place Head digital Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series (119700,119750,119780) Placement Machine with Head Modularity, in a 6-Segment Collect and Place Head with Digital Camera. The Kit includes: 6-Segment Collect and Place Head digital, Set Nozzles, Set Sleeves, Cover, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6-Segment Collect and Place Head digital has to be ordered separately. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119762-01 | The 20-Segment Collect and Place Head digital Re-Configuration Kit is necessary to exchange the actual Placement Head of the SIPLACE X-Series (119700,119750,119780) Placement Machine with Head Modularity, in a 20-Segment Collect and Place Head digital. The Kit includes: 20-Segment Collect and Place Head, Set Nozzles, Head Servo Cards, Head Adapter board, Cables, additional parts, Tools for Head exchange, Box for replaced Head and a Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer (119715/119716) for the 20-Segment Collect and Place Head digital has to be ordered separately. Additional recommended the Verify component reject bin (116848). Mandatory required are Changeover Table X-Series (119722) and X-Feeder. Attention: Not for SIPLACE X4i. SIPLACE expert with special tools highly recommended, risk of damage and warranty losses |
| 00119775S01 | Package for placement of 0201 components (size 0.6mm x 0.3mm). Suitable for SIPLACE D4i/D2i/D1i equipped with the 12-Segment Collect and Place head. The Package includes: High resolution camera (Exchange against standard digital component camera. The standard digital component camera is then not part of the delivery), 24 x Nozzles type 906 oval tip, Component Sensor, Reconfiguration Instructions for 0201 placement. A 0201 package is essential for each placement head. This item number can only be ordered in combination with new SIPLACE Di-Series. It cannot be ordered separately. Machine System requirement: Station Software from 605.03 SP2 and SIPLACE Pro from Version 10.0 or higher. |
| 00119786-02 | vacuum pump install kit for X2,X3,X4 |
| 00119787-02 | Vacuum pump for X-series |
| 00119860-01 | The Reconfigurationkit C&P is neccessary to exchange the 6-Segment Collect and Place Head of the D1/D2 with a 12-Segment Collect and Place Head. The Kit includes: 12-Segment Collect and place Head, Component camera, Set Sleeves, Cover, Tools for Head exchange, Box for replaced Head, Nozzles (Type 904) and a technical manual for the head exchange. With this kit the Head exchange can be performed by trained Service personal at customer side within 8 hours. If required, the automatic nozzle changer for the 12-Segment Collect and place head has to be ordered seperatly. |
| 00119861-01 | The Reconfigurationkit C&P is neccessary to exchange the 12-Segment Collect and Place Head of the D1/D2 with a 6-Segment Collect and Place Head. The Kit includes: 6-Segment Collect and place Head, Component camera, Set Sleeves, Cover, Tools for Head exchange, Box for replaced Head, Nozzles (Type 904) and a technical manual for the head exchange. With this kit the Head exchange can be performed by trained Service personal at customer side within 8 hours. If required, the automatic nozzle changer for the 6-Segment Collect and place head has to be ordered seperatly. |
| 00119862-01 | The Adapter Kit SIPLACE D1 P&P Head is necessary to upgrade a Siplace D1 machine with only a Collect & Place Head to a SIPLACE D1 with an additional P&P Head. After the upgrade a wider component range could be achieved, in detail for larger and higher components. For more details regarding wider component range and other technical points, please see the actual specification of the SIPLACE D1. This adapter kit includes the Pick and Place Module, Nozzle changer P &P which includes 2 dual magazines for standard nozzles and 1 magazine for special nozzles, stationary Component Camera (Type 36), Servo cards, electrical and pneumatic connections, small parts and a technical manual. The retrofit time for the machine of the hardware parts will be approx. 4 hours (excluding additional effort on programming in SIPLACE Pro). |
| 00119863-01 | The Adapter Kit SIPLACE D1 C&P 6 Head is necessary to upgrade a Siplace D1 machine with only a Pick & Place Head to a SIPLACE D1 with an additional 6 Segment Collect & Place Head. After the upgrade a wider component range could be archived and due to the Collect & Place principle also a higher placement rate with smaller components. For more details regarding higher performance and wider component range, please see the specification of the SIPLACE D1. This adapter kit includes the 6 Segment Collect & Place Head, 12 Sleeves, Component Camera (Type 29), Servo cards, electrical and pneumatic connections, small parts and a technical manual. If required, the automatic nozzle changer for the 6 Segment Collect & Place head has to be ordered separately (Item No. 119866). The retrofit time for the machine of the hardware parts will be approx. 4 hours (excluding additional effort on programming in SIPLACE Pro). |
| 00119864-01 | The Adapter Kit SIPLACE D1 C&P 12 Head is necessary to upgrade a Siplace D1 machine with only a Pick & Place Head to a SIPLACE D1 with an additional 12 Segment Collect & Place Head. After the upgrade a wider component range could be achieved and due to the Collect & Place principle also a higher placement rate with smaller components. For more details regarding higher performance and wider component range, please see the specification of the SIPLACE D1. This adapter kit includes the 12 Segment Collect & Place Head, 12 Sleeves, Standard Component Camera (Type 28), Servo cards, electrical and pneumatic connections, small parts and a technical manual. If required, the automatic nozzle changer for the 12 Segment Collect & Place head has to be ordered separately (Item No. 119865). The retrofit time for the machine of the hardware parts will be approx. 4 hours (excluding additional effort on programming in SIPLACE Pro). |
| 00119920S01 | Package for placement of 01005 components (size 0.4mm x 0.2mm). Suitable for the SIPLACE D4/D2/D1 equipped with the 12 Collect & Place Head (DLM3). The component range will be from 01005 up to the maximum of 16mm x 16mm. The package includes: 1 x High resolution camera Type 38 (exchange against standard component camera. The standard component camera is then not part of the delivery), 12 x Nozzle 905, 3 x Low Force Sleeves, 1 x Assembly instruction. Also included are shims for the component tables of the SIPLACE D4. In addition the tape feeder module 3x8mm 01005 Comp. (Item number:176100) is necessary for 01005 feeding and has to be ordered separately. Additional Low Force Sleeves could also be ordered (Item number: 03054107-xx). For additional 0201 placement, a component sensor (item number: 118021) is mandatory. The price for this 01005 package is only valid in combination with a new D-Series Machine (D4/D2/D1). System requirement: Station Software from 604 and SIPLACE Pro from Version 5.0. |
| 00119977-01 | PCI memory card for storing data for the function recovery placement in SIPLACE X-series. One card per machine is required. With the function recovery placement the placement of a PCB inside SIPLACE X4i can be continued after power or system failure. |
| 00119992S01 | Option Smart Pin Support is required once for the SX1/2 single and dual line per SX1/2. Prerequisit is transport type V2. This option includes the pin picker and depending on table position and nozzle changer configuration either a magzine L10 (119996) or Q10(119997). Per transport lane 5 pins (119995) are included. Considering the cofiguration list additional magazins and pins can be ordered. |
| 00119995S01 | 5 Standard Support Pins (type101) for the option Smart Pin Support. Dependant on the magazine type 10 pins (L10,Q10) or 5 pins (W5) can be accommodated. |
| 00120040-01 | ADJUSTING GAUGE COMPONENT CARRIAGE FOR HS180 |
| 00140113-01 | Solution to verify SIPLACE X-feeders on accuracy and functionality and also to perform maintenance and simple parts replacement. The package contains X-Feeder Care Station for electronic test of the main feeder functionality, User manual, Feeder Service Manual, specific tools. This offering in combination with a Feeder Care Training enables customers to gain all expertise to ensure that SIPLACE X-feeders are capable for production. |
| 00141070S02 | SIPLACE Tape feeder for 1 x 88mm tape, with electric drive and cover tape storage bin, 4mm to 96mm feed increments, for SIPLACE F and HF/X/D-Series. 3.5 feeder locations required per module. |
| 00141088S01 | Tape feeder module 3x8mm SL SIPLACE |
| 00141092S05 | Feeder module for 1 x 12mm or 1 x 16mm tape (reconfigurable), 4mm – 16mm feeding pitch with motorized drive and integrated cover foil removal for SIPLACE 80S-15/20/F/F4, 1 feeder location required per module From SW version 402.03 ( S-20/F4) or 9.02 |
| 00141093S05 | Feeder module for 1 x 24mm or 1 x 32mm tape (reconfigurable), 4 – 32mm feeding pitch with motorized drive and inte- grated cover foil removal for SIPLACE 80 S15/20/F/F4/F5/S23HM, 1 feeder locations required per module. From SW version 402.03 or 9.02 |
| 00141094S05 | Feeder module for 1 x 44mm tape 4 – 44mm feeding pitch with mo- torized drive and integrated cover foil removal for SIPLACE 80F/F4. 2 feeder locations re- quired per module. From SW version 402.03 or 9.02 |
| 00141095S05 | Feeder module for 1 x 56mm tape 4 – 56mm feeding pitch with motorized drive and integrated cover foil removal for SIPLACE 80F/F4 2,5 feeder locations required per module. From SW version 402.03 or 9.02 |
| 00141097S05 | Feeder module for 1x72mm S-tape 4 – 72mm feeding pitch with mo- torized drive and integrated cover foil removal for SIPLACE 80 F/F4/F5 |
| 00141117S02 | Feeder with tape return mechanism for tantalum capacitor types E for 1 x 12mm tape with electric motor and cover foil pick-up, 4-16mm feeder pitch, for SIPLACE HS-50, SIPLACE 80 S-15/S-20/S-23 and SIPLACE 80 F/F4/F5 HM. |
| 00141118S02 | Feeder with tape return mechanism for tantalum capacitor types C/D for 1 x 12mm tape with electric motor and cover foil pick-up, 4-16mm feeder pitch, for SIPLACE HS-50, SIPLACE 80 S-15/S-20/S-23 and SIPLACE 80 F/F4/F5 HM. |
| 00141193S01 | Feeder module for 1 x 24mm or 1 x 32mm tape (configurable),up to 25mm tape height,4mm/40mm feeding pitch, with motorized drive and integrated cover foil removal,for SIPLACE. 1,5 feeder locations required per module. From SW version V402.03. |
| 00141194S01 | Feeder module for 1 x 44mm tape,up to 25mm tape height,4mm/52mm feeding pitch, with motorized drive and integrated cover foil removal,for SIPLACE F and HF/X-Series. 2 feeder locations required per module. From SW version V402.03 or V9.02. |
| 00141195S01 | Feeder module for 1 x 56mm tape,up to 25mm tape height,4mm/68mm feeding pitch, with motorized drive and integrated cover foil removal,for SIPLACE F and HF/X-Series. 2,5 feeder locations required per module. From SW version V402.03 or V9.02. |
| 00141255-01 | Power Supply for SIPLACE Feeder Modules with S-interface (not for X-feeders). |
| 00141269S02 | Tape Feeder Module 2x8mm X |
| 00141270S04 | Tape Feeder Module 8mm X for 1 x 8mm component tape, motorized drive, cover foil storage and unique feeder ID for SIPLACE X-Series. Feeder pitch sent automatically from the programming system or set at feeder control panel. |
| 00141271S04 | Tape Feeder Module 12mm X |
| 00141272S06 | Tape Feeder Module 16mm X |
| 00141273S06 | Tape Feeder Module 24mm X for 1 x 24mm component tape, motorized drive, cover foil storage and unique feeder ID for SIPLACE X-Series. Feeder pitch sent automatically from the programming system or set at feeder control panel. |
| 00141274S06 | Tape Feeder Module 32mm X for 1 x 32mm component tape, motorized drive, cover foil storage and unique feeder ID for SIPLACE X-Series. Feeder pitch sent automatically from the programming system or set at feeder control panel. |
| 00141275S06 | Tape Feeder Module 44mm X for 1 x 44mm component tape, motorized drive, cover foil storage and unique feeder ID for SIPLACE X-Series. Feeder pitch sent automatically from the programming system or set at feeder control panel. |
| 00141276S06 | Tape Feeder Module 56mm X for 1 x 56mm component tape, motorized drive, cover foil storage and unique feeder ID for SIPLACE X-Series. Feeder pitch sent automatically from the programming system or set at feeder control panel. |
| 00141289S02 | Tape Feeder Mod. 2x8mmX w. Splice Sensor |
| 00141290S06 | Tape Feeder Mod. 8mm X w. Splice Sensor |
| 00141291S05 | Tape Feeder Module 12mm X with Splice Sensor for 1 x 12mm component tape, motorized drive, cover foil storage and unique feeder ID for SIPLACE X-Series. Feeder pitch sent automatically from the programming system or set at feeder control panel. Attention: Functionality of the splice sensor is only available with software and hardware upgrade/exchange planned with SW 605 (Q-Package 2). Until this time the function Splice Detection is deactivated and is therefore no acceptance criteria. |
| 00141292S06 | Tape Feeder Mod. 16mm X w. Splice Sensor. |
| 00141293S06 | Tape Feeder Mod. 24mm X w. Splice Sensor. |
| 00141294S06 | Tape Feeder Mod. 32mm X w. Splice Sensor. |
| 00141295S06 | Tape Feeder Mod. 44mm X w. Splice Sensor. |
| 00141296S06 | Tape Feeder Mod. 56mm X w. Splice Sensor. |
| 00141297S06 | Tape Feeder Mod. 72mm X w. Splice Sensor. |
| 00141298S06 | Tape Feeder Mod. 88mm X w. Splice Sensor. |
